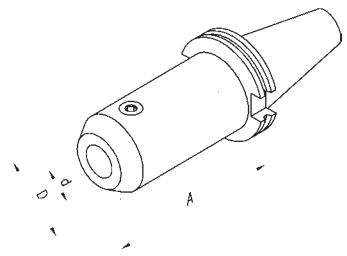

| Mã đặt hàng | Cone | d | A | D |
| mm | mm | mm | ||
| 331100.0100 | SK40 | 6 | 100 | 25 |
| 331100.0120 | SK40 | 6 | 130 | 25 |
| 331100.0140 | SK40 | 6 | 160 | 25 |
| 331100.0160 | SK40 | 6 | 200 | 25 |
| 331100.0200 | SK40 | 8 | 100 | 28 |
| 331100.0220 | SK40 | 8 | 130 | 28 |
| 331100.0240 | SK40 | 8 | 160 | 28 |
| 331100.0260 | SK40 | 8 | 200 | 28 |
| 331100.0300 | SK40 | 10 | 100 | 35 |
| 331100.0320 | SK40 | 10 | 130 | 35 |
| 331100.0340 | SK40 | 10 | 160 | 35 |
| 331100.0360 | SK40 | 10 | 200 | 35 |
| 331100.0400 | SK40 | 12 | 100 | 42 |
| 331100.0410 | SK40 | 12 | 130 | 42 |
| 331100.0420 | SK40 | 12 | 160 | 42 |
| 331100.0430 | SK40 | 12 | 200 | 42 |
| 331100.0440 | SK40 | 14 | 100 | 44 |
| 331100.0450 | SK40 | 14 | 130 | 44 |
| 331100.0460 | SK40 | 14 | 160 | 44 |
| 331100.0470 | SK40 | 14 | 200 | 44 |
| 331100.0500 | SK40 | 16 | 100 | 48 |
| 331100.0510 | SK40 | 16 | 130 | 48 |
| 331100.0520 | SK40 | 16 | 160 | 48 |
| 331100.0530 | SK40 | 16 | 200 | 48 |
| 331100.0540 | SK40 | 18 | 100 | 50 |
| 331100.0550 | SK40 | 18 | 130 | 50 |
| 331100.0560 | SK40 | 18 | 160 | 50 |
| 331100.0570 | SK40 | 18 | 200 | 50 |
| 331100.0600 | SK40 | 20 | 100 | 52 |
| 331100.0620 | SK40 | 20 | 130 | 52 |
| 331100.0640 | SK40 | 20 | 160 | 52 |
| 331100.0660 | SK40 | 20 | 200 | 52 |
| 331100.0720 | SK40 | 25 | 130 | 63 |
| 331100.0740 | SK40 | 25 | 160 | 63 |
| 331100.0760 | SK40 | 25 | 200 | 63 |
| 331100.0800 | SK40 | 32 | 130 | 72 |
| 331100.0820 | SK40 | 32 | 160 | 72 |
DIN 69871, Form AD/B, balanced for 15,000 rpm.

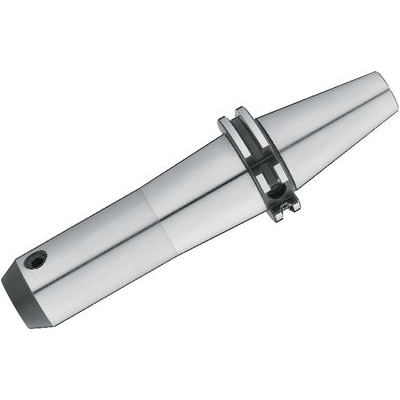

331100 End mill chuck FUTURO
DIN 6359, Weldon, long version.
Application: Holding tools with cylindrical shank and Weldon flat, sized in accordance with DIN 1835B.
Bore tolerance:H4
Appropriate accessories:
339720 Cone cleaner
339770 Tightening screw
Package content: With clamping screw(s).
