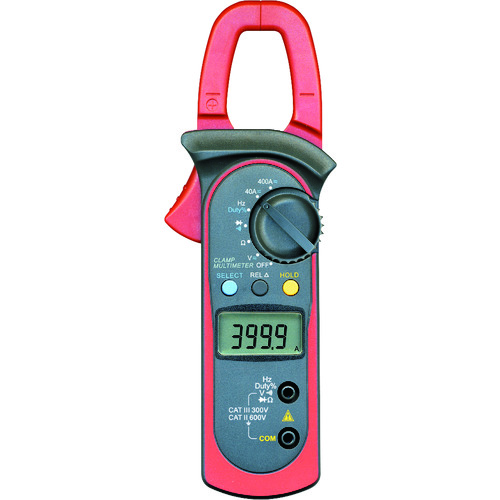

- This is a multi-function general-purpose clamp meter that can also measure DC current.
- Both DC and AC currents can be measured while they are running
- There are 9 items that can be measured
- Easy to use 3999 count display
- Indoor electrical work, installation and maintenance of electrical equipment.
- For design and maintenance of electrical and electronic circuits.
- Measurement items: DC current, AC current, DC voltage, AC voltage, resistance, frequency, duty cycle, continuity check, diode
Specifications in detail
DC current/AC current: 40.00/400.0A (±2.5%rdg±8dgts)
DC voltage: 400.0m/4.000/40.00/400.0/600V (±0.8%rdg±1dgt)
AC voltage: 4.000/40.00/400.0/600V (±1.2%rdg±5dgts)
Resistance: 400.0/4.000k/40.00k/400.0k/4.000M/40.00MΩ(±1.0%rdg±2dgts)
DC current (A): 400
AC current (A): 400
DC voltage (V): 600
AC voltage (V): 600
Resistance(Ω): 40M
Detection method: Average value rectification (MEAN)
Width(mm):76
Depth (mm): 30
Height (mm): 208
Power supply: 1 x 6F22 9V square battery (included)
Frequency: 10/100/1k/10k/100k/1M/10MHz (±0.5%rdg±3dgts)
Maximum measuring conductor diameter (mm): 28
Maximum display (count): 3999
A&D AD5586
