Features
- Since the embossed convex parts come into direct contact with the substrate, extremely high conductivity is achieved in the thickness direction.
- A large adhesive area for the conductive part ensures stable conductivity.
- It has excellent corrosion resistance.
- Can be soldered.
Purpose
- Strengthened electromagnetic shielding and grounding.
- Grounding of PC units and flat cables.
Specifications in detail
Adhesive strength: 3.8N/10mm
Tensile strength: 35N/10mm
Flame retardant (UL510 certified)
UL standard compliant (File E59505)
Color: Silver
Width (mm): 182
Thickness (mm): 0.07
Adhesive strength (N/10mm): 3.8
Length (mm): 257

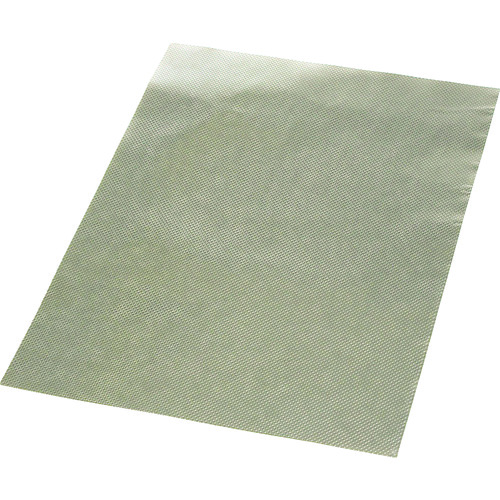

3M 1345 B5
