Features
- Since the embossed convex parts come into direct contact with the substrate, extremely high conductivity is achieved in the thickness direction.
- A large adhesive area for the conductive part ensures stable conductivity.
- Can be soldered.
Purpose
- Strengthened electromagnetic shielding and grounding.
- Grounding of PC units and flat cables.
Specifications in detail
Flame retardant (UL510 certified)
UL standard compliant (File E59505)
Color: Brown
Width (mm): 19
Thickness (mm): 0.10
Adhesive strength (N/10mm): 40
Tensile strength (N/10mm): 610
Length (mm): 3000
Compliant standards: UL (File E59505)
Paper tube size (mm): 78

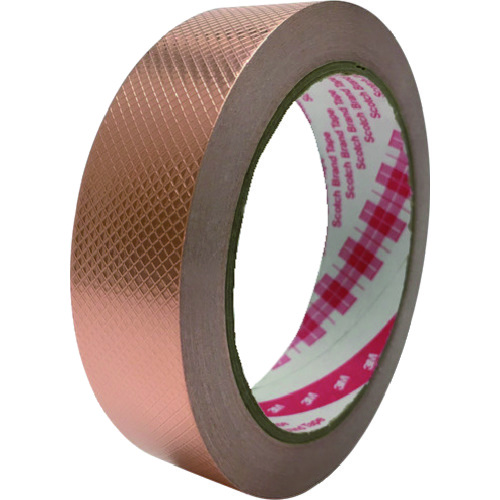

3M 2245 19X3
