Thông tin sản phẩm
Operating temperature range: 5 to 50°C
Oil used: Turbine oil type 1 (VG32-ISO 3448)
Set pressure (MPa): 0.05 to 1.0
Oil storage capacity (CM3): 8.0
With pressure gauge
Maximum operating pressure (23°C): 1.0MPa
Filtration accuracy (μm): 25
Processing air flow rate ((M3)/min): 5.1
Connection diameter: G1/2 female thread
Drain discharge method: Semi-automatic drain
Fluid used: Compressed air, neutral gas

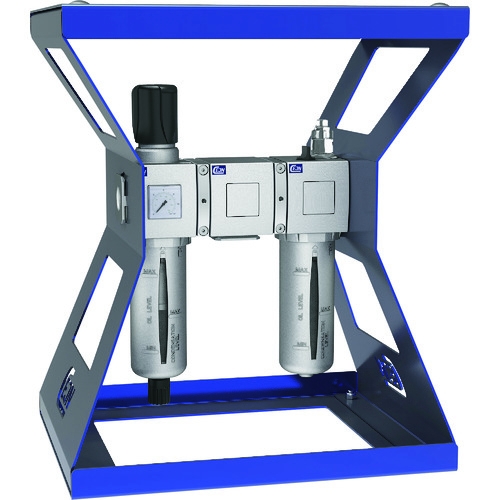

CEJN 19-503-5645
