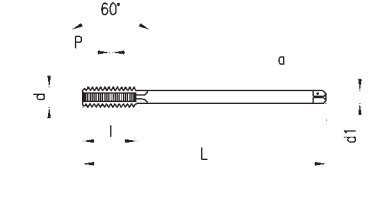

| Mã đặt hàng | d | P | Tiêu chuẩn DIN | L | l | d1 | a | Ø |
| mm | mm | mm | mm | mm | mm | |||
| 264380.0100 | M2 | 0.4 | 352 | 36 | 8 | 2.8 | 2.1 | 1.6 |
| 264380.0200 | M2.5 | 0.45 | 352 | 40 | 9 | 2.8 | 2.1 | 2.05 |
| 264380.0300 | M3 | 0.5 | 352 | 40 | 10 | 3.5 | 2.7 | 2.5 |
| 264380.0400 | M4 | 0.7 | 352 | 45 | 12 | 4.5 | 3.4 | 3.3 |
| 264380.0500 | M5 | 0.8 | 352 | 50 | 14 | 6 | 4.9 | 4.2 |
| 264380.0600 | M6 | 1 | 352 | 56 | 16 | 6 | 4.9 | 5 |
| 264380.0700 | M8 | 1.25 | 352 | 63 | 18 | 6 | 4.9 | 6.8 |
| 264380.0800 | M10 | 1.5 | 352 | 70 | 20 | 7 | 5.5 | 8.5 |
| 264380.0900 | M12 | 1.75 | 352 | 75 | 24 | 9 | 7 | 10.2 |
| 264380.1000 | M16 | 2 | 352 | 80 | 26 | 12 | 9 | 14 |
